    Smart Beer Barrel Industrial Pressure Sensor Diffused Silicon Liquid Level Transducer

    Ask Lasest Price
    Brand Name : WNK
    Model Number : WNK80MA
    Certification : CE&UL
    Payment Terms : T/T, Paypal, West union
    • Product Details
    • Company Profile

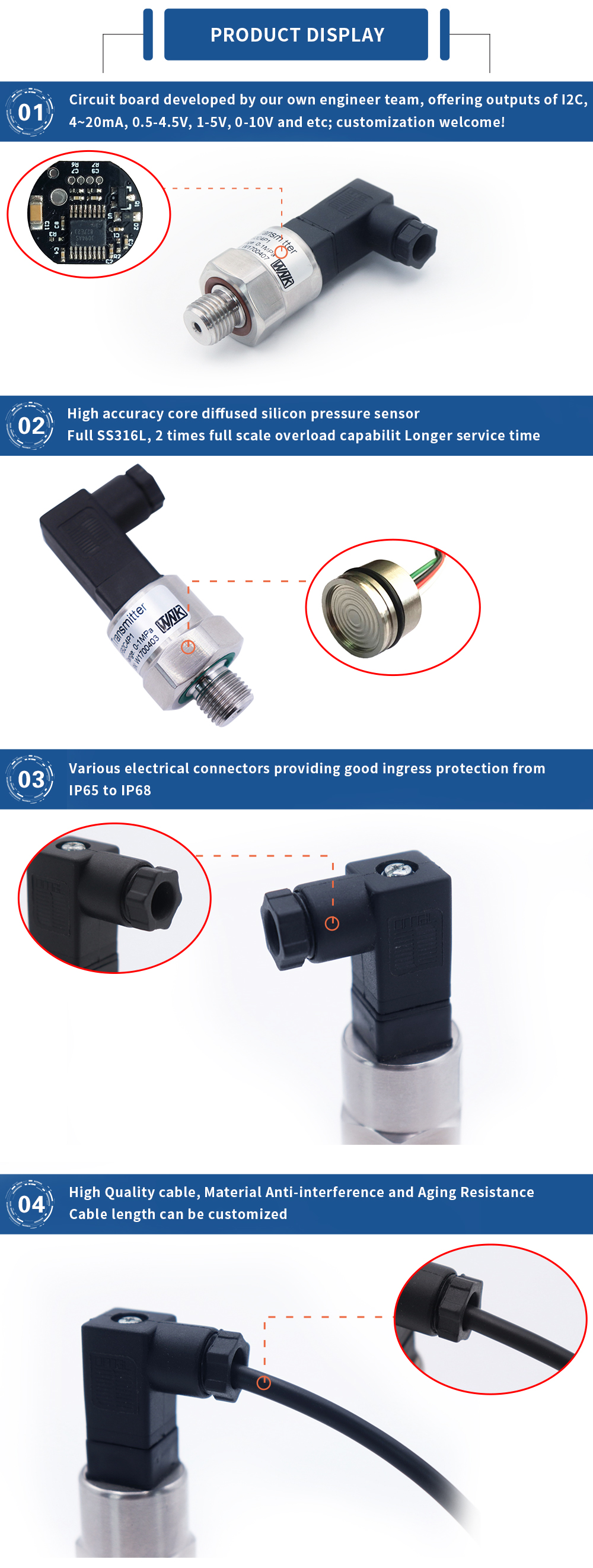

    Smart Beer Barrel Industrial Pressure Sensor Diffused Silicon Liquid Level Transducer

    Smart beer barrel pressure sensor diffused silicon liquid level transducer


    WNK81MA is especially suitable for manufacturing of high-performance industrial control pressure transmitter and harsh environment pressure measurement, with high output and wide range.


    Product Description


    Applicable mediaLiquid, gas and steam
    Pressure range-100KPa-70Mpa
    CellDiffused silicon pressure sensor
    Pressure measurmentGauge Pressure, absolute pressure and sealing pressure
    Output4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
    Power supply24VDC/12VDC/5VDC/3.3V
    Accuracy(linearity,Hysteresis and Repeatability)0.5%F.S.
    Compensation temperature-20~85ºC
    Ambient temperature-40~125ºC
    Working temperature-40~125ºC
    Temperature drift(zero)±0.15% F.S. (-20~85ºC)
    Temperature drift(full range)±0.15% F.S. (-20~85ºC)
    Electrical connectionParkard, Cable outlet, M12, mini DIN43650
    Mechanical connectionG1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
    Housing material304 stainless steel(316SS for inner core)
    ProtectionIP65


    Application:


    WNK81MA is solution for below applications:

    Pressure measurement of gas, vapor or liquid in various areas;

    Liquid level, volume or mass measurement;

    Integrated in a variety of user-defined solutions;

    Smart driking water and nature gas controlling system, samrt fire controlling. automotive electronics controlling, air compressor, HVAC, pump, valve and etc;

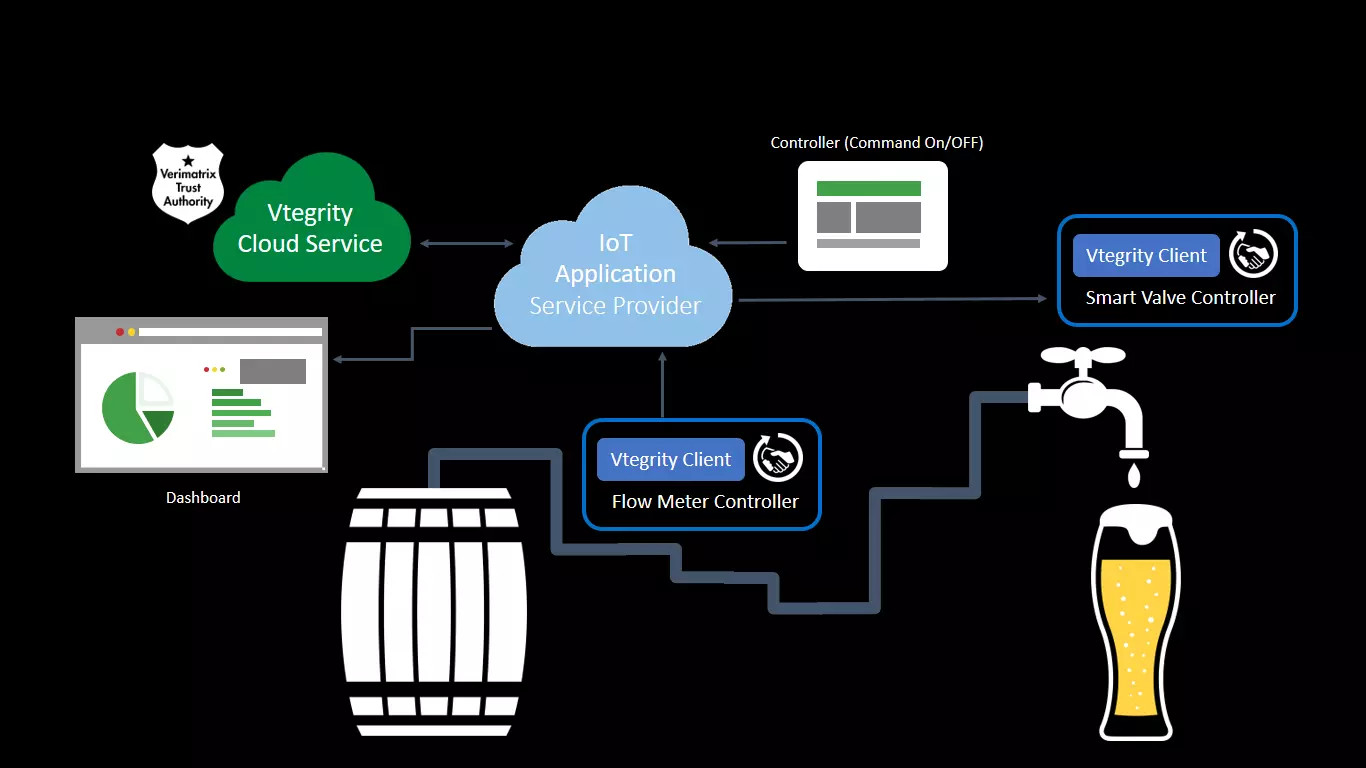

    Sensors used in smart beer barrel!


    It turns out that beer kegs can also become so smart!
    The so-called smart beer keg refers to a temperature sensor and a pressure sensor device installed in the beer keg, which monitors and adjusts the temperature in the beer keg in real time and keeps the air pressure in the keg constant. These two are the key indicators to ensure the freshness and killing power of beer. It can let consumers know the temperature and pressure of liquor in the barrel in real time, and the safety valve configured in the smart barrel can better ensure the safety of the barrel in transportation and extreme weather.



    Company introduction:


    FAQ


    Q: Are you trading company or manufacturer ?

    A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

    Q: What's your quality control system?

    A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

    Q: What is the warranty of your products?

    A: 12 month from shipment date, for non-man-made damages.

    Q: Shipping and Delivery

    A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

    Large orders are recommended to ship by sea
