Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

Ask Lasest Price
Brand Name :	WNK
Model Number :	WNKSPS
Certification :	CE Rohs
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	2000 pieces per week
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

Electronic pressure switch transmitter and display in one device

Product Description

Introduction - Smart SST Electronic Pressure Switch for Water Pump, Compressor

The pressure switch SPS is designed for pressure monitoring and measure-ment in liquid and gaseous media. The SPS is suited for general industrial applications such as machine and plant engineering, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one and the same device.

Product Features - SPS Intelligent Electronic Pressure Switch with OLED Display

1. Smart type, with PNP/NPN switching.
2. Swithing points settable, NO/NC availalbe
3. With OLED display, with 5 digit available.
4. Provide RS485 communication for option.

Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

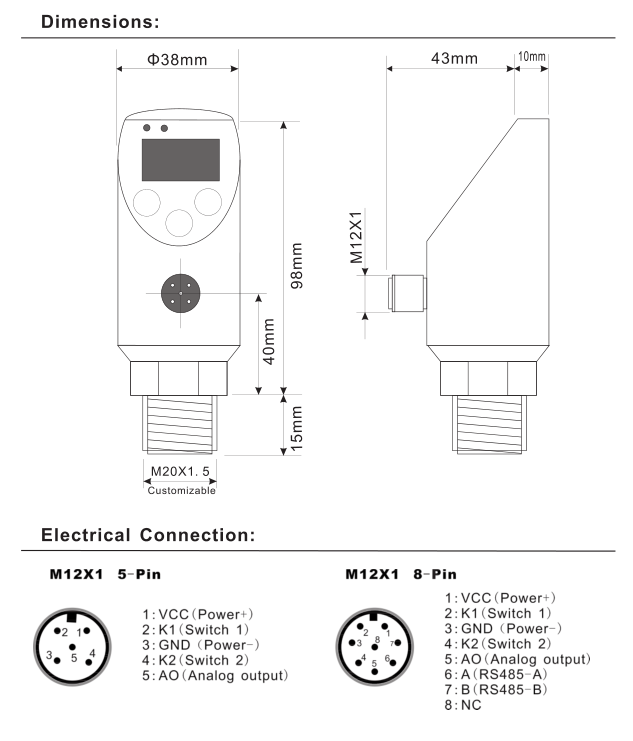

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

SPS-1

SPS

Electronic Pressure Transmitter Switch / 4-20mA Water Pressure Sensor Switch

FAQ

Q: Are you trading company or manufacturer ?

A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.

Q: What's your quality control system?

A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.

Q: What is the warranty of your products?

A: 12 month from shipment date, for non-man-made damages.

Q: Shipping and Delivery

A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.

Large orders are recommended to ship by sea
