Specifications

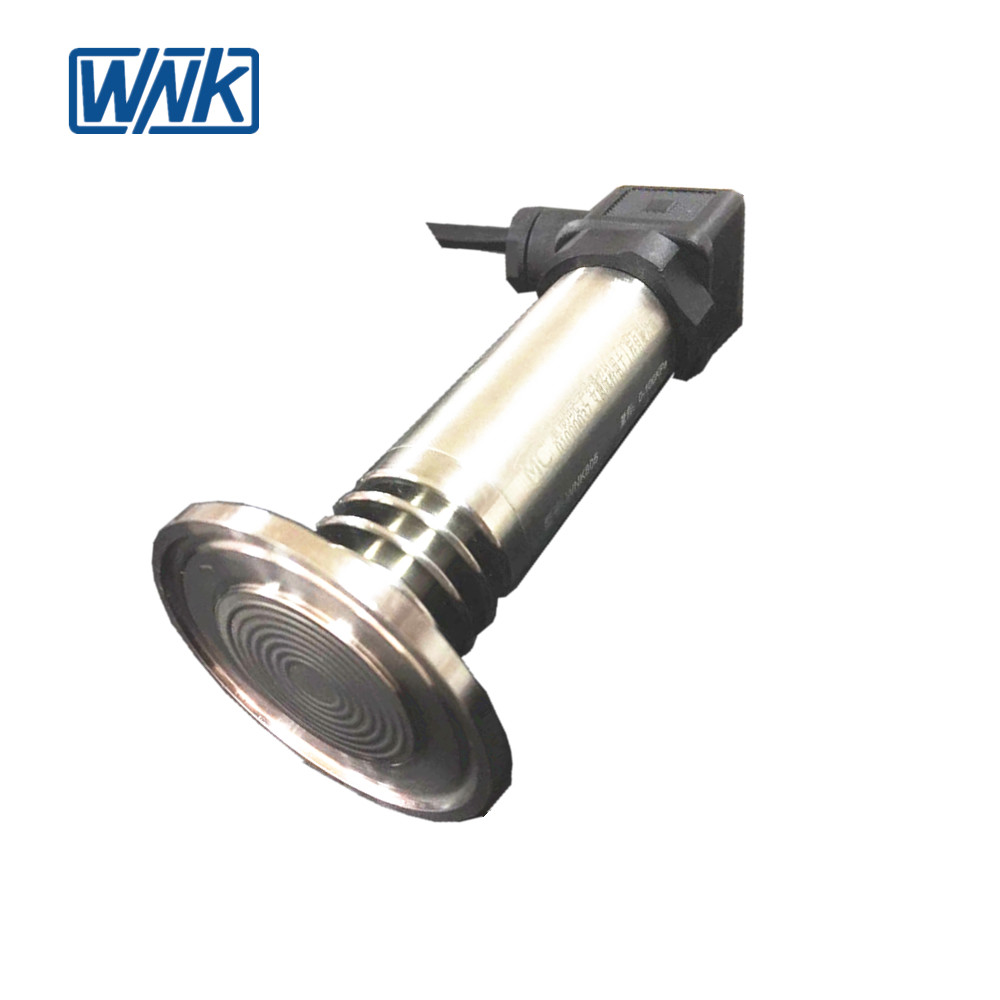

The Series WNK805 Sanitary Pressure Transmitter is designed to meet
the applications in food, dairy, beverage and pharmaceutical
processing, liquid level control, and sanitary pipelines. The unit
is fully sealed to withstand high pressure wash-down in
Clean-in-Place and Sterilize-in-Place installations.
Tri-clamps are one of the most common types of pipe connections in
the food, beverage, biotech, and pharmaceutical industries. This
type of connection consists of a gasket compressed between two
tri-clamp ferrules or flanges which are mechanically compressed in
place with a clamp. Tri-clamp fittings are available in a variety
of sizes, can be constructed from either steel or plastic, and can
be either permanent or temporary. The clamp itself also comes in a
variety of designs for ease of disassembly and cleaning.
It is therefore essential to select the right type of tri-clamp
fitting to ensure the connection operates effectively in a given
application. Choosing the right size and type of fitting can help
minimize or eliminate contamination, bacterial growth, leaks, and
deterioration of the connection material.
High Temperature Sanitary Clamp Flush Type Pressure Transmitter |
Applicable media | Liquid, Gas, Steam |
Pressure measurment | Gauge Pressure, Absolute pressure, Negative pressure, Sealing
pressure |
Pressure range | 0-0.2 ...100kPa, 0-0.2 ...1000kpa, 60 MPa |
Output signals | Typical output 4...20mA, 0.5...4.5VDC, For option: 1-5V, 0-5V,
0-10V DC |
Accuracy | 0.25%, 0.5%, 1.0%FS |
Stability | ±0.25% FS/year |
Zero drift | 50% of full range span. |
Max overload | 200% of sensor range |
Display | LED (Optional) |
Housing material | 304SS, 316L |
Mechanical connection | Clamp,Flush and Flange |
| Non-explosion: 10.5~45V DC |
EEX ia:10.5~30 V DC |
Ambient temperature | -40~85℃ |
Process temperature | -40~85℃ |
| - Standard ranges from vacuum to 60Mpa |
| - Accuracy up to ±0.25% |
| - 4-20 mA 2-wire output signal, others available |
| - Highly resistant to pressure spikes and vibration |
| - Stainless steel case and wetted parts |
| - Full range of process and electrical connections |
| - Assemble to diaphragm seals for special applications |
| - Suitable for gas, liquid, steam pressure measurement |
| - Intelligent digital circuit with precise temperature
characteristic compensation |
| - Tantalum sensor contact for option for pressure measurement with
corrosive media |
