60mpa Digital Electronic Pressure Switch For Sanitary Application

Ask Lasest Price
Brand Name :	WNK
Model Number :	SPS
Certification :	SGS, ISO9001:2015
Price :	Negotiation
Payment Terms :	T/T, Western Union
Supply Ability :	5000pcs per month
Delivery Time :	5-8 work days

Add to Cart

Product Details
Company Profile

60mpa Digital Electronic Pressure Switch For Sanitary Application

SPS pressure switch is designed for pressure monitoring and measurement in liquid and gaseous media. The SPS is suited for general industrial applications such as in mechanical manufacturing, in machine tool systems, in hydraulic and pneumatic systems, for pressure monitoring and control and for pumps and compressors. It is pressure switch, transmitter and display in one device. In its standard configuration it has optional two switching outputs (PNP or NPN), an analog output signal (0...20mA| 4…20 mA or 0...5V| 0…10 V) as well as with RS485 Link.

Applications
pump control,
storage tank monitor,
liquid level control,
filter blocking and monitor,
leakage surveillance.

Feautures

- Programmable automatic control design

- OLED with back-light display

- Display 180°turnable

- Displaying pressure peak value and environment temperature

- Body 330°rotable

- Industrial touch-sensitive button

- Switch points settable

- PNP/NPN +4~20mA/0-5V output

- Support MODBUS

- Pressure, level and temperature switch

- OEM & Customizable

Production Spec

SPS Intelligent Electronic Pressure Switch with OLED Display
Applicable media	Liquid, Gas, Steam
Pressure measurment	Gauge Pressure, Absolute pressure
Pressure range	-100kPa~60MPa
Output Signal	2×PNP + 0V~5VDC/10VDC + MODBUS(RS485)
Output Signal	2×PNP + 0mA/4mA~20mADC + MODBUS(RS485)
Accuracy	0.5% FS
Stability	±0.3% FS/year
Switch current	1.0A(Max.)
Switching type	Normally open / closed (settable)
Display	OLED (Optional)
Housing material	304 stainless steel
Mechanical connection	M20×1.5; 1/2-18NPT, 1/4NPT, Customize
Storge temperature	-40~80℃
Process temperature	-30~80℃
Protection class	IP65

Dimension

60mpa Digital Electronic Pressure Switch For Sanitary Application

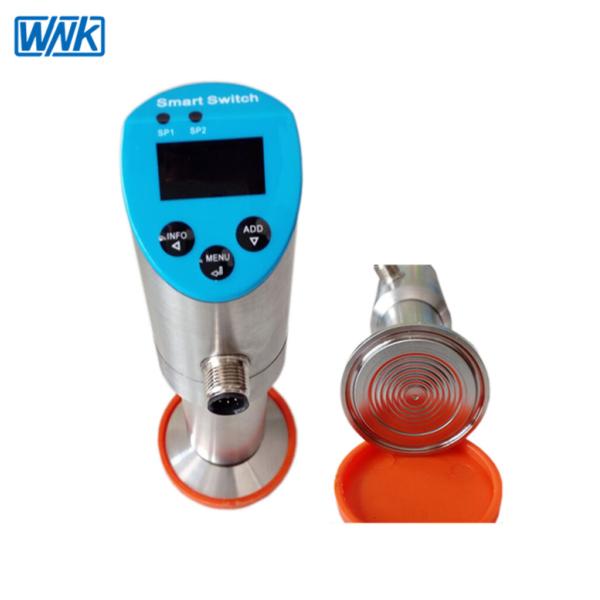

Product Show

60mpa Digital Electronic Pressure Switch For Sanitary Application
